Description

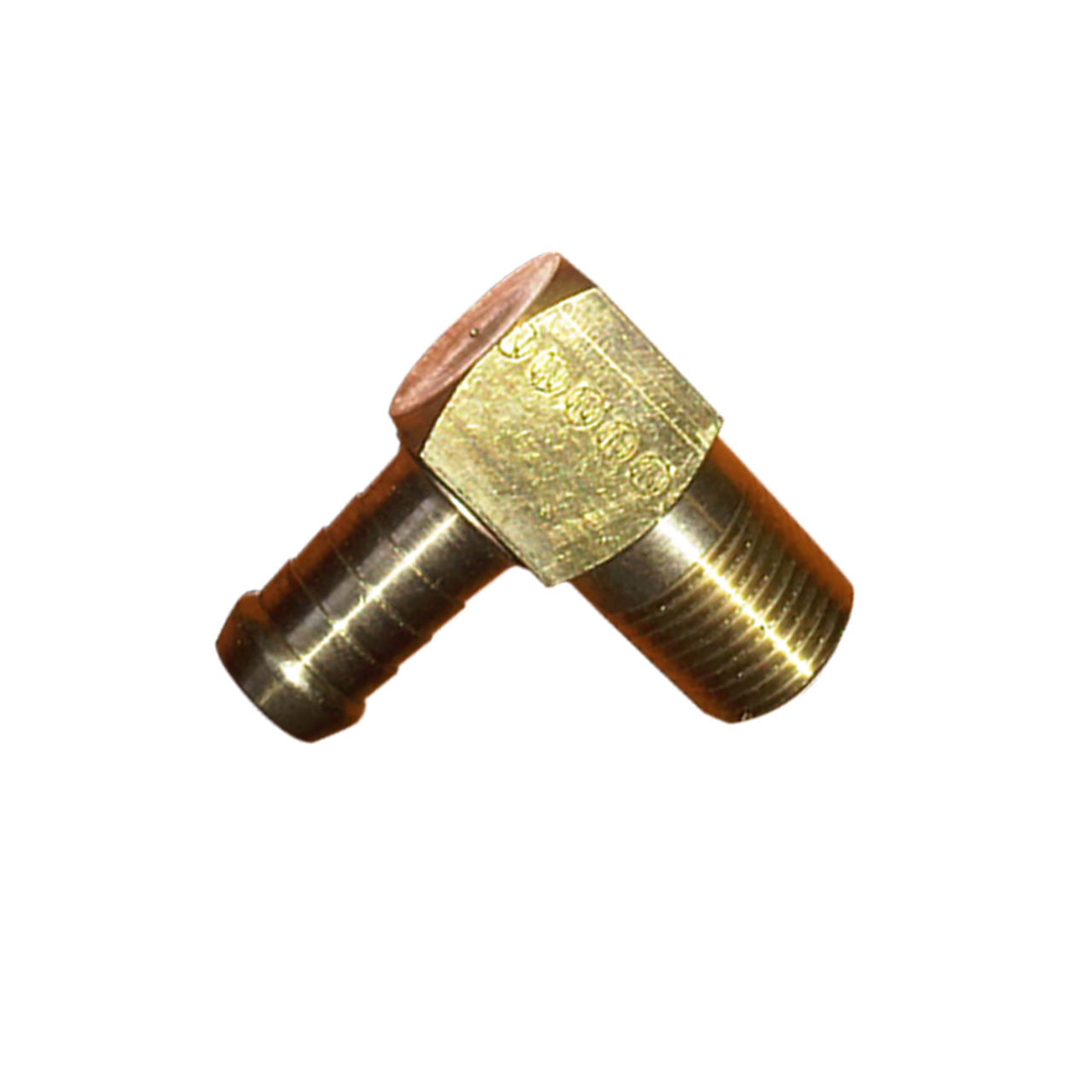

Racor 90 Degree Brass Fittings suit:
Racor 400 Series Units : 445R, 406R & 490R.
Racor brass fittings are manufactured in both regular hose barb and beaded hose barb styles. Thread ends include NPTF, SAE straight thread and metric threads.
Pack includes:
1 Pair of 90 Degree Brass fittings
Thread size is 3/8"-18 NPTF
5/16" Barb for push on hose
Assembly Instructions
1. Cut hose cleanly and squarely to length
2. Slide clamp on hose
3. Lubricate hose
4. Push hose fitting to bottom of stop ring or hex
5. Position hose clamp as shown below
and secure with a screwdriver or wrench
Maintain "A" dimension for proper clamp positioning
