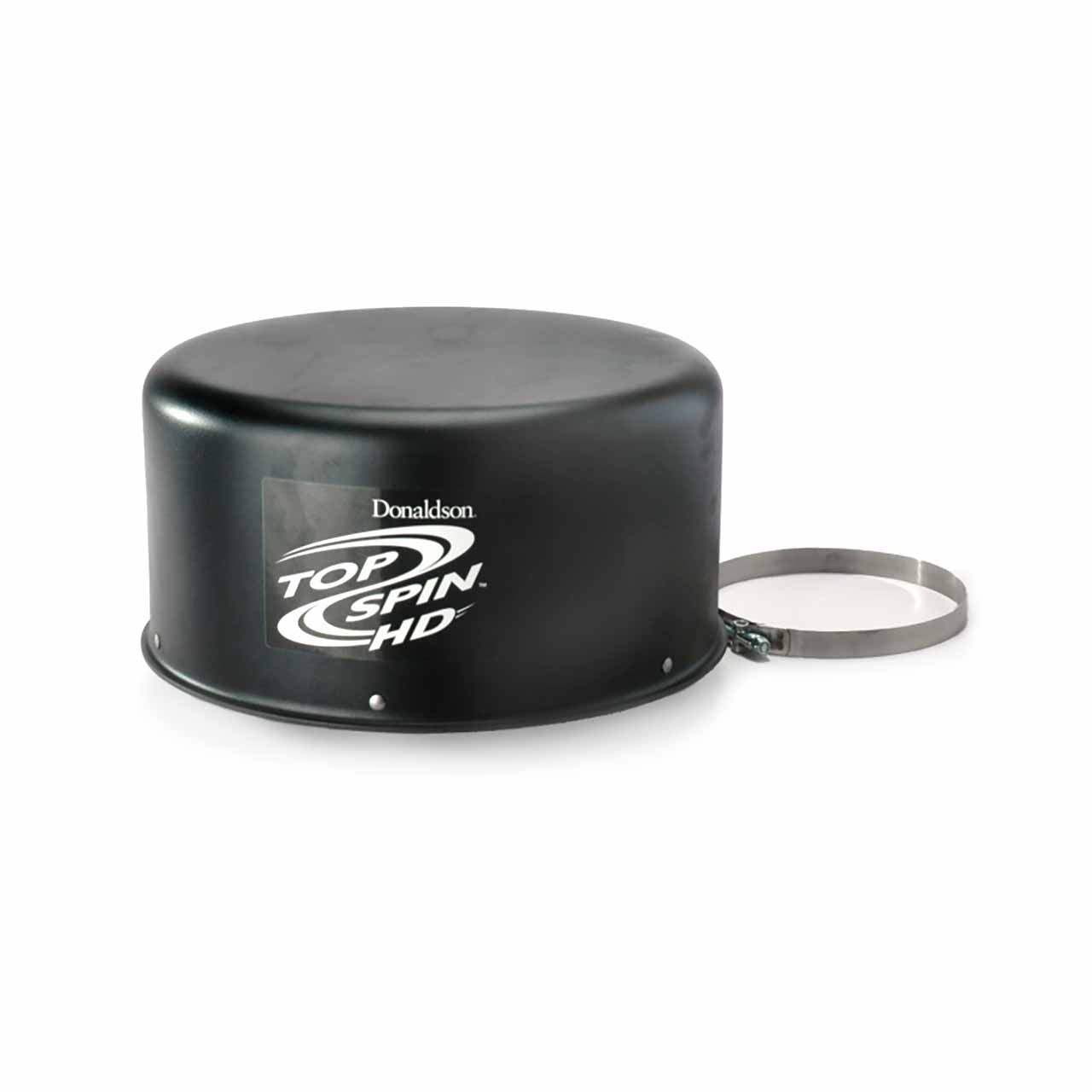

Donaldson TopSpin HD Heavy-Duty Pre-Cleaner H002856 (H002224 Upgrade):
For Construction, Mining, Oil & Gas, Quarrying, Logging, Agriculture, Road & Rail Maintenance.
Extending the life of air filters in the most demanding environments where equipment encounters heavy dust and flying debris. If dust, grit and dirt are a part of your daily operation, don't make your air cleaners do the job alone. Pre-cleaning the air entering the intake port can dramatically improve the life of air cleaners, and help avoid costly engine failure. TopSpin HD air pre-cleaners are a tough, durable solution for the punishing conditions that can damage exposed equipment. Available in eight sizes for every engine and airflow level. TopSpin HD air pre-cleaners separate and eject up to 80% (ISO 5011 with coarse dust) of incoming contaminants before they can reach the engine’s air filter. :: Longer filter life, less frequent replacement. Lower operating cost :: Less maintenance time :: In punishing environments like mining, oil and gas, and construction, exposed accessories like pre-cleaners can really take a beating. That’s why Donaldson's TopSpin HD may be the last pre-cleaner you’ll need to buy. Its all-metal con- struction, high-efficiency design and low restric- tion will eject the heaviest dust particles and keep functioning smoothly for as long as you own your machinery :: Best of all there's no bowl to empty.The self- aspirating design means contaminants are continuously purged automatically. Just install aTopSpin HD pre-cleaner and forget about it.
View TopSpin HD Pre-Cleaner Brochure >
Attributes:
Height: 213mm (8.39 inch)
Body Diam Max: 375mm (14.76 inch)
Outlet ID: 180mm (7.09 inch)
Efficiency: 80.00
Efficiency: Test Std: ISO 5011
Rated Flow LR: 21m³/min (742 cfm)
Rated Flow HR: 38m³/min (1342 cfm)
Restriction LR 71mm H2O (2.80 inch H2O)
Restriction HR: 246mm H2O (9.69 inch H2O)
Cross Reference: TURBO PRE-CLEANER 500, 68
It’s Easy to Switch:
Find a compatible Donaldson TopSpin HD heavy-duty pre-cleaner to replace any of the models listed here.
