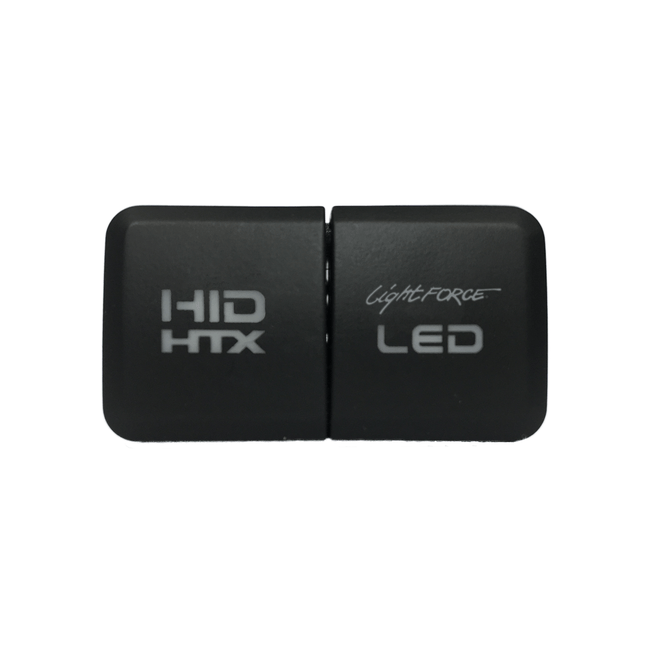

Dual LED/HID HTX Switch to suit Toyota/Holden

This OEM style switch feature the HID and LED icons, horizontally, and is for use with the HTX Hybrid Driving Lights.

Suitable for 70 Series Landcruiser’s and the Holden Colorado when used with the Lightforce switch fascia #CBFASCIA2 (lower switch positions).

Illumination is only activated when the vehicles dash lights are on, green illumination with switch in the off position with blue illumination when the switch is on.

The switches can function independent of the dash lights, however will not illuminate until the vehicles dash lights are activated.
A single input activates both the left or right switches, so if you have multiple dual switches they will need to be grouped into lighting (active with Hi beam) or active with a constant power or ACC on power.

The switch must be used in conjunction with a relay as it has a maximum current rating of 3 amps @12v.
Single powered input feeding two independently switched outputs
Dual coloured illumination powered via existing dash light circuit

• Suitable for both positive and negative switched vehicles

• Harness included (300mm in length)

• Current rating 3 amps @ 12v

• Australian design patent

• CE Certified

Product Dimensions: 18mm x 38mm x 55mm
Switch cut out size: 17mm 35mm

Vehicle Compatibility
