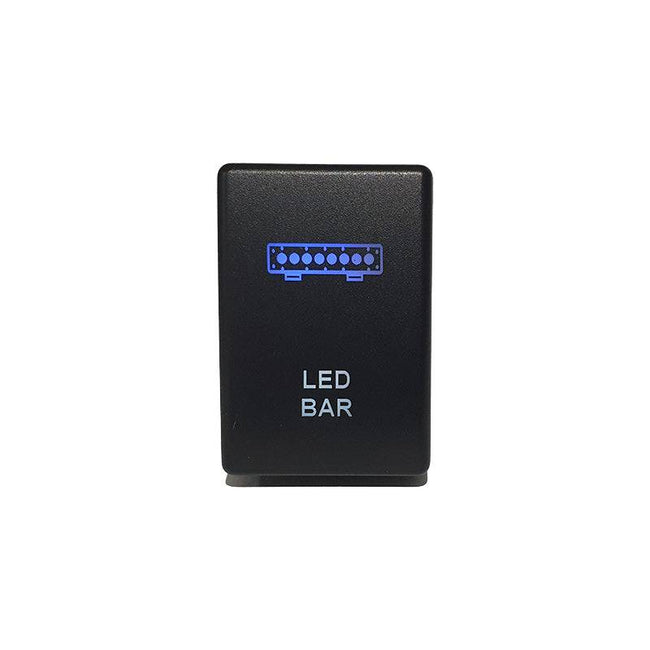

Led Bar Switch To Suit Isuzu/Mazda/Holden

The Text Illuminates White Via The Dash Light Circuit. Once The Switch Is Pushed On, The Upper Icon Window Illuminates Blue.

This Factory-Style Led Bar Switch Is Designed Specifically To Fit 3^Rd Generation Vehicles Only And Will Fit Into The Original Dashboard, (Right-Hand Side Of The Steering Wheel) Without Any Modification.

Specifications Include:

• Switch Cut Out Size Is 20mm X 31mm

• Housing Material Black Pvc

• Single Switch Input

• Dual Led Illumination

• Suitable For Positive Switched Vehicles Only

• Harness Included (300mm In Length)

• Current Rating 3 Amps @ 12v (Must Be Used In Conjunction With A Relay)

Harness Compatibility:

Compatible With Lightforce Single Switch 8 Pin Adaptor # Swadp4. This Enables Direct Connection To Lightforce Harness Part Number Strikerledharn (Striker Led Harness).

Switch Connectivity:

Vehicle Compatibility
