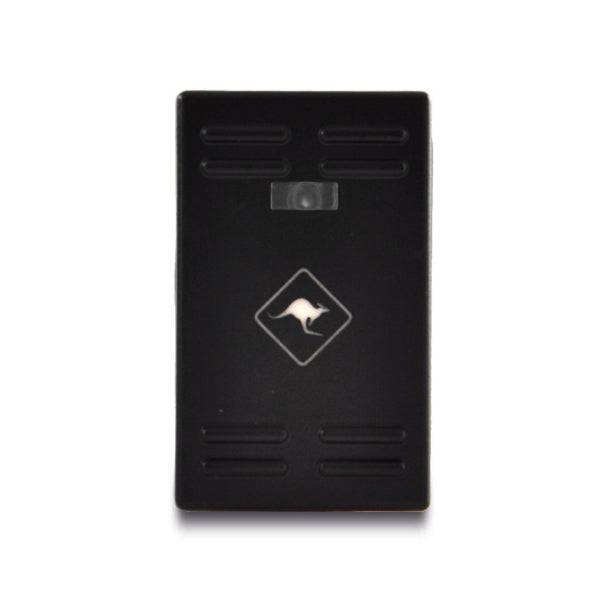

This Switch Is To Suit Ford Ranger Px1 And Is An Exact Fit Into The Original Business Card Holder (This Is Not Suitable For The Px2) And Also Suitable For Second-Generation Mazda Bt50 From October 2011.
The Roo Logo Illuminates White Via The Dash Light Circuit, Once The Switch Is Pushed On, The Upper Clear Window Illuminates Blue.
- Single Switched Input
- Led Illumination
- Suitable For Positive Switched Vehicles Only
- Harness Included (300mm In Length)
- Current Rating 3 Amps @ 12v
To Remove Business Card Holder From Vehicle: First Remove The Fuse Panel Cover Located Next To The Driver's Side Door, Then Dislodge The Lower Trim Panel Located Next To The Fuse Panel That Has Just Been Removed.
This Will Allow You Access To The Back Of The Switch Blank (Business Card Holder), Apply Light Pressure To The Top Then The Bottom To Dislodge From Within The Dash.
Do Not Try And Remove The Switch Blank By Using A Screw Driver This Will Result In Damaging The Dash Surface.
Vehicle Compatibility
| Make |
Model |
Badge (Variant) |
Compatible From |
Compatible To |
| Ford |
Ranger Px |
|
2011 |
2015 |
| Mazda |
Bt50 |
1st Gen |
2011 |
2017 |
| Mazda |
Bt50 |
2nd Gen |
2006 |
Nov 2020 |
