Important Notes

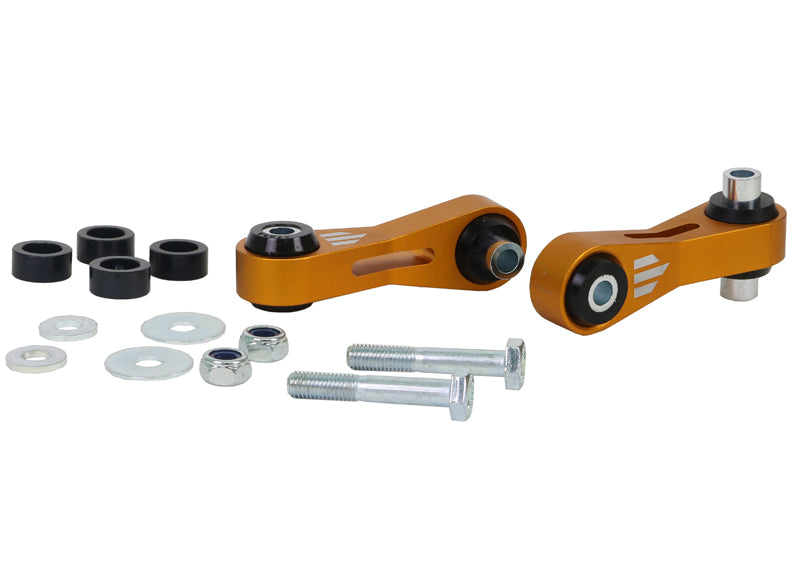

Extra heavy duty alloy link
The kit utilises a high tensile extruded alloy link fitted with ultra low compliance synthetic elastomer bushings. Critical hardware is replaced with high tensile components to match the higher loads. The result is much more precise and direct roll control with up to 25% more effective bar rate available at lower wheel deflection points. This does NOT mean an outright increase in your bar rate but rather a quickening of its effect allowing more bar rate earlier. Link shape and bush mounts are designed to allow maximum sway bar articulation to ensure full suspension travel while acting more directly under vertical load. Standard length maintains correct sway bar operation.
Vehicle Applications
KLC231 is suitable for the following vehicles. Select a vehicle for specific fitment details:
SUBARU BRZ 2012-ON - BRZ ZC6
SUBARU FORESTER 2008-2013 - FORESTER SH
SUBARU FORESTER 2013-2018 - FORESTER SJ
SUBARU IMPREZA 2007-2011 - IMPREZA GE, GH
SUBARU IMPREZA 2011-2016 - IMPREZA GJ, GP
SUBARU IMPREZA WRX 2007-2011 - IMPREZA WRX GE, GH
SUBARU IMPREZA WRX 2011-2014 - IMPREZA WRX GV, GR
SUBARU IMPREZA WRX 2014-ON - IMPREZA WRX VA
SUBARU IMPREZA WRX STI 2007-2011 - IMPREZA WRX STI GE, GH
SUBARU IMPREZA WRX STI 2011-2014 - IMPREZA WRX STI GV, GR
SUBARU IMPREZA WRX STI 2014-ON - IMPREZA WRX STI VA
SUBARU LEVORG 2016-ON - LEVORG VM
SUBARU LIBERTY 2009-2014 - LIBERTY BM, BR
SUBARU LIBERTY 2015-ON - LIBERTY BN
SUBARU OUTBACK 2009-2014 - OUTBACK BR
SUBARU OUTBACK 2015-ON - OUTBACK BS
SUBARU XV 2011-2017 - XV GP7
SUBARU XV 2017-ON - XV GT
TOYOTA 86 2012-ON - 86 ZN6
