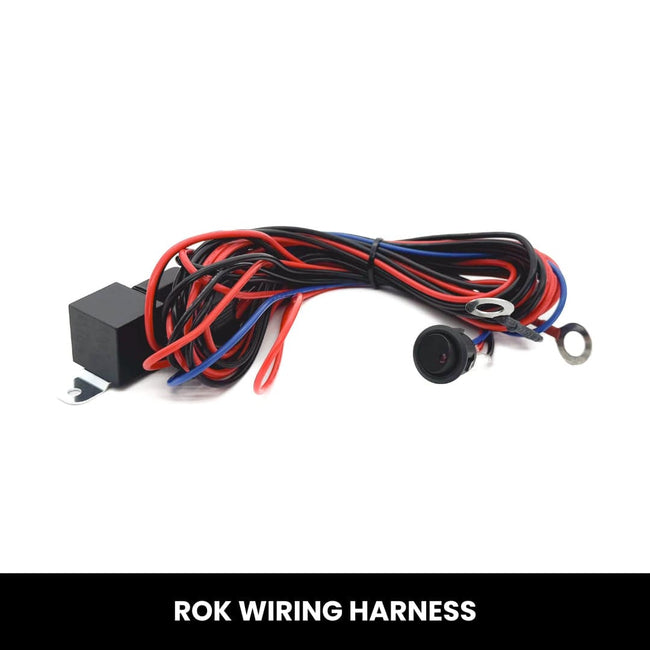

Wiring Harness For Installing Rok Work Lights. Suits Rok 10,20 And 40. Features 2 Pin Deutsch Connector And 40 Amp Relay.
Kit Inclusions
1 X Wiring Harness
1 X Instructions
This 12 Volt Wiring Harness Is Suitable For Use With The Rok 10, 20 And 40 Series Led Work Lights.

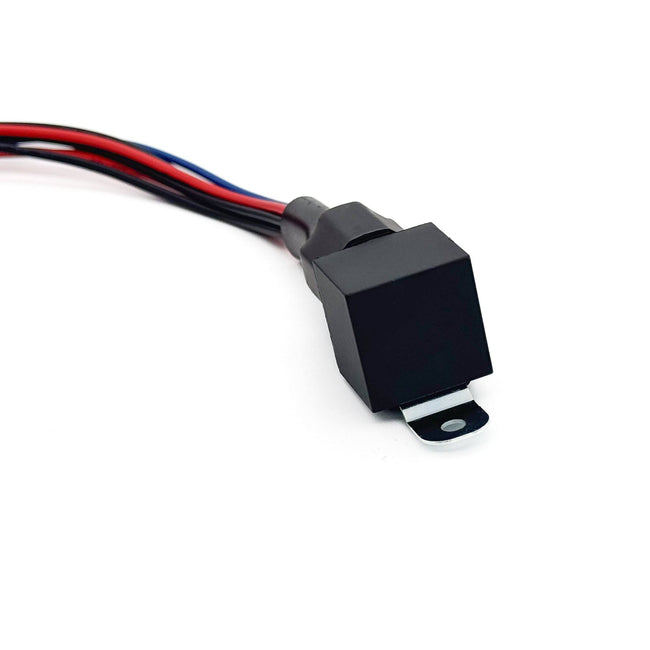

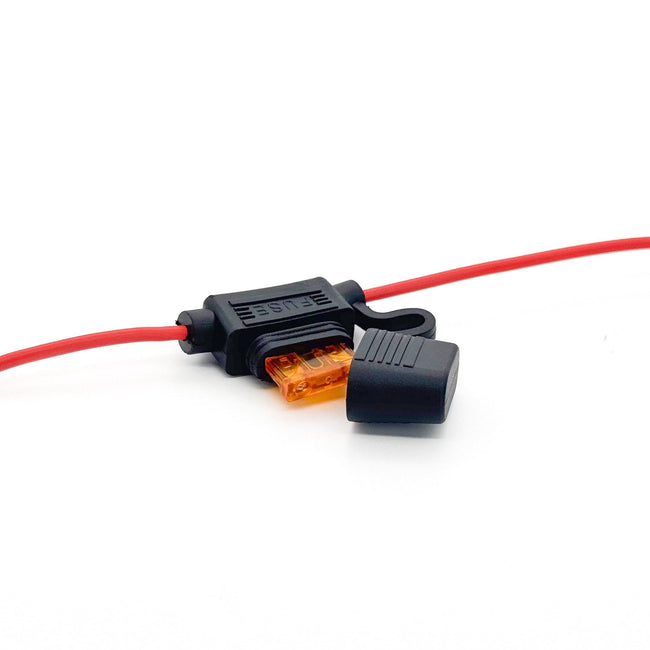

Harness Incorporates A 40 Amp Relay, Fully Terminated Two Pin Waterproof Deutsch Connector And Illuminated Switch, With An Inline Fuse Rated At 5 Amps.
Cable Lengths:
Relay To Deutsch 2 Pin Connector - 2.3 Meters
Relay To Battery Ring Terminals - 1.2 Meters
Relay To Switch - 1.3 Meters
Switch Connections:
Pin 1: Blue - Power Out
Pin 2: Red - Power In
Pin 3: Black - Ground (For Led Illumination)
