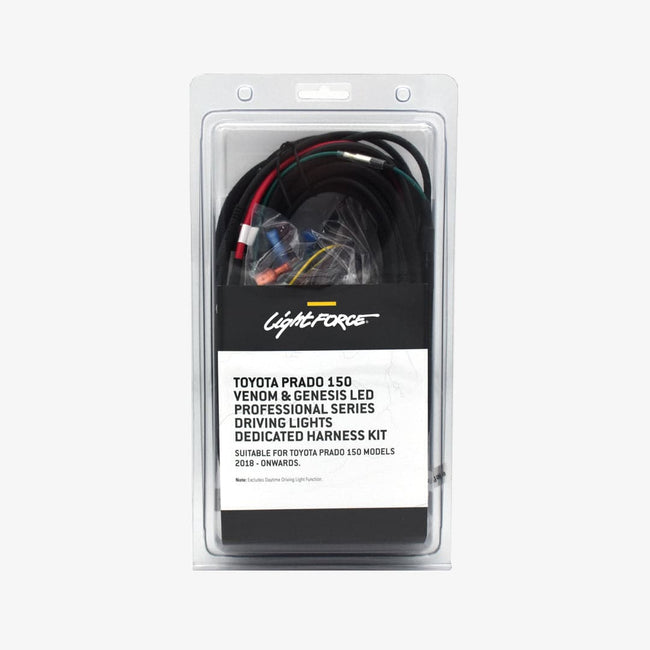

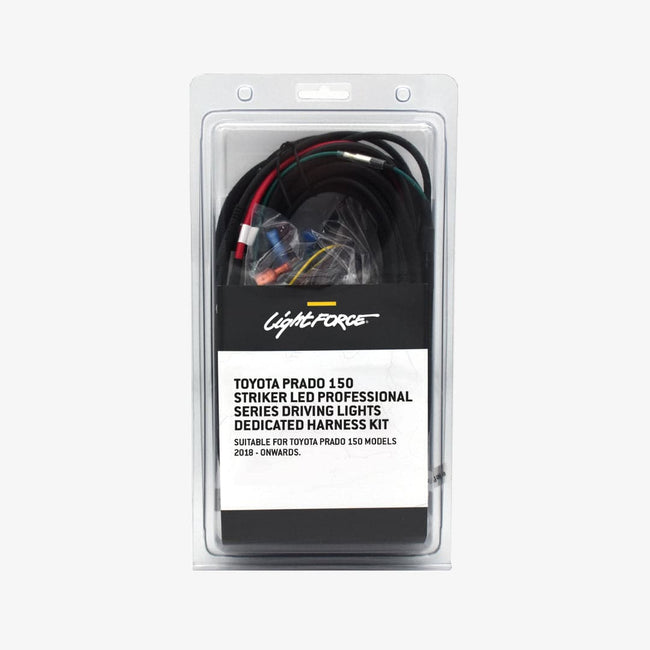

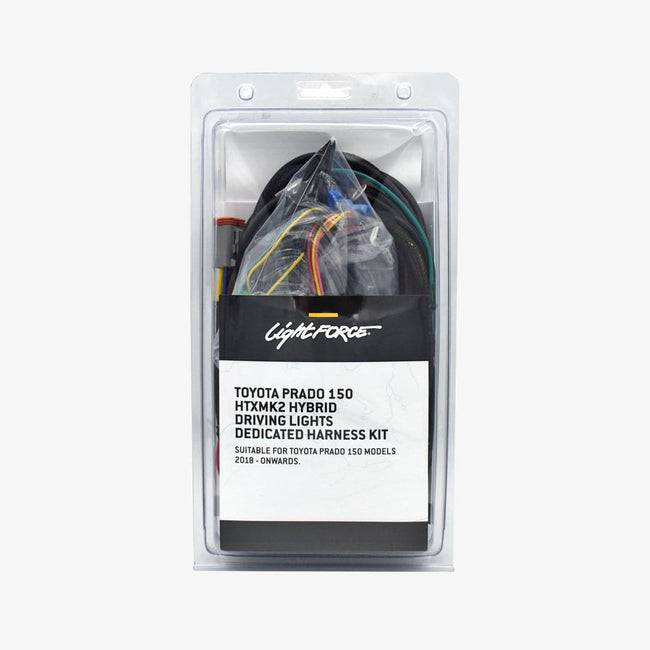

Toyota Prado Driving Light Wiring Harness

Compatible With Toyota Prado 150 2018-2023 Models

This Dedicated Wiring Harness Allows For A Complete Plug And Play Solution When Using Lightforce Driving Lights. Due To The Canbus System It Is Not Possible To Pick Up A Conventional High Beam Connection Within The Engine Bay From These Vehicles. The Alternative Method Is From Inside The Cabin At The Steering Column By Connecting Our Control Module To The Factory Twenty Pin Connector.

Wiring Harnesses To Suit The Following Lightforce Driving Lights:

• Htx Hybrid
• Genesis Led (Position Function Not Available)
• Striker Led
• Venom Led (Position Function Not Available)

Please Note: As A Safety Precaution, If The Vehicles Automatic Headlights Or The Automatic High Beam Assist Is Active, The Additional Driving Lights Will Not Activate

The Ultimate Plug And Play Driving Light Wiring Harness.

Designed By Lightforce, This Custom Designed Premium Single Switching 12v Driving Light Harness Kit Is Suitable Only For Use With Models Fitted With Factory Bi-Led Headlights.

This Lightforce Harness Allows For Easy Plug And Play Fitment Into The Existing Factory Electrical System By Integration With The Connector Located Under The Steering Column Trim.

Features

• Turnkey Solution To Fitting Driving Lights
• Dedicated Wiring Harness For Each Model
• Dedicated Installation Instructions
• Installation Within The Cab Requires Minimal Trim To Be Removed
• Factory Styled Switch Included For Seamless Integration Into Dash
• Only One Multicore Cable Is Required To Be Passed Through The Fire Wall From Within The Engine Bay


Kit Contents

• 1 X Diy Harness Installation Kit

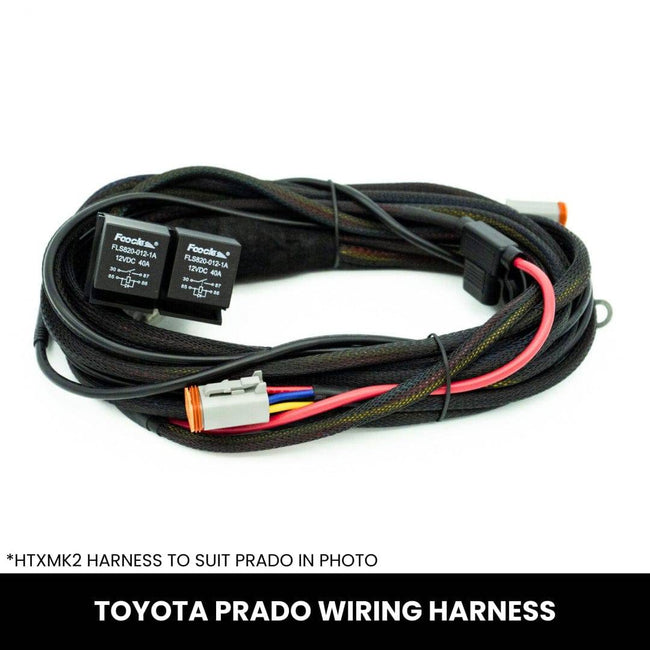

• 1 X Premium Driving Light Harness
• 1 X Hb3 And H4 Patch Harness
• 1 X Switch - (Htx - Cbswty2dhtx)/(Striker ; Venom - Cbswty4dl)
• 1 X User Instructions
• Assorted T-Taps, Crimps, Spade Terminals And Cable Ties.


Specifications

• 12v Operation
• 40 Amp Relay
