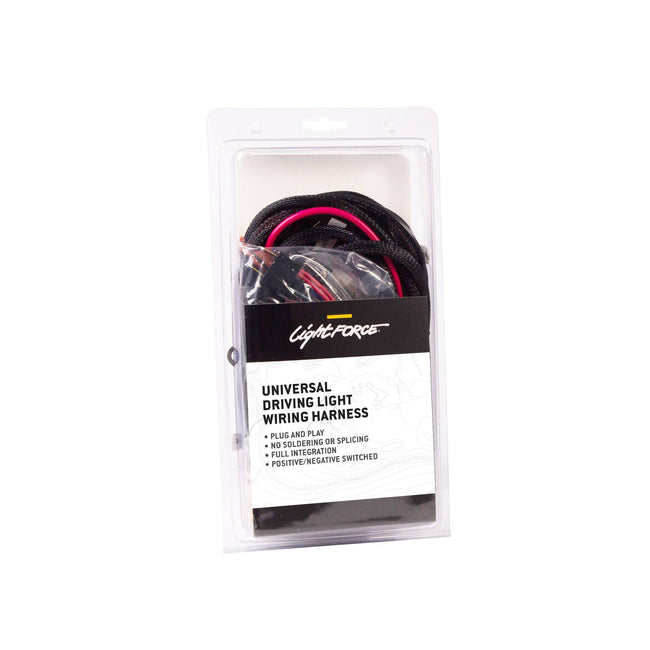

The Ultimate Plug And Play Universal Driving Light Wiring Harness.
- Save time and money
- No soldering or splicing
- Full integration
Designed by Lightforce, this premium single switching 12v Driving Light Wiring Harness, fully integrates with a range of Lightforce designed headlight patch harnesses, switch connectors and switches. The end result is a complete plug and play driving light installation.
This system comes complete with H4 and HB3 headlight adaptors for simple integration into your vehicle’s headlight circuit, with additional connections included for different configurations.
Positive or negative switching is controlled electronically. Output to switch is always positive, so no changing of wiring or guesswork is required.
A very small (8mm in diameter) moulded 8 pin connector makes installation quick and easy as only one connector is required to pass through the vehicle’s firewall. It connects directly to the supplied single mouse switch.
KIT INCLUSIONS
1 x DIY harness installation kit

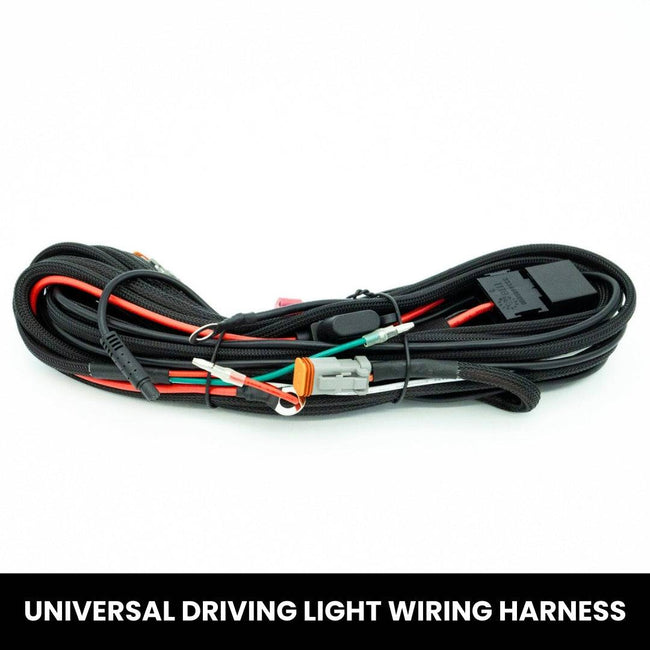

1 x Premium Driving Light Harness

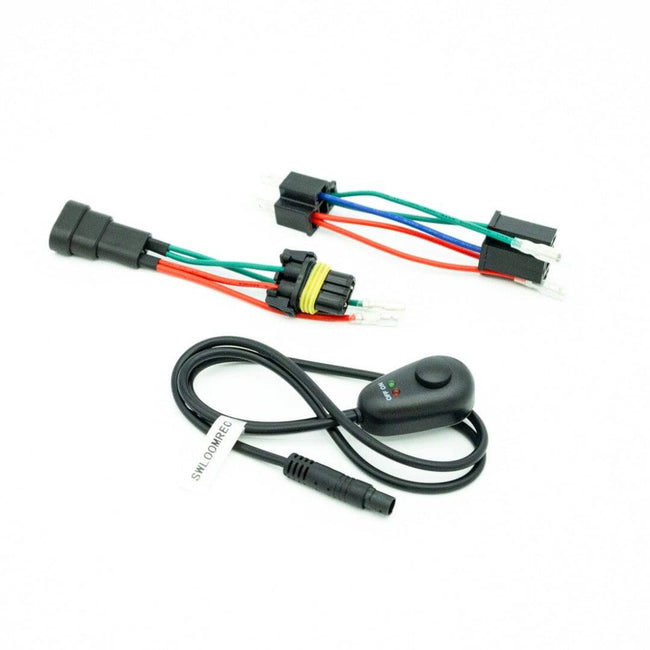

1 x HB3 and H4 Patch Harness
1 x Switch
2 x Corresponding 2 pin Deutsche style connectors
Assorted t-taps, crimps, spade terminals and cable ties.
SPECIFICATIONS
12v operation
40 amp relay
Positive or negative switching (controlled electronically).
