Description
We Use The Latest Led Technology To Produce A Combined Light Source Interior Light, Resulting In A Very Broad And Uniform Light Ideal For Cars And Suvs.

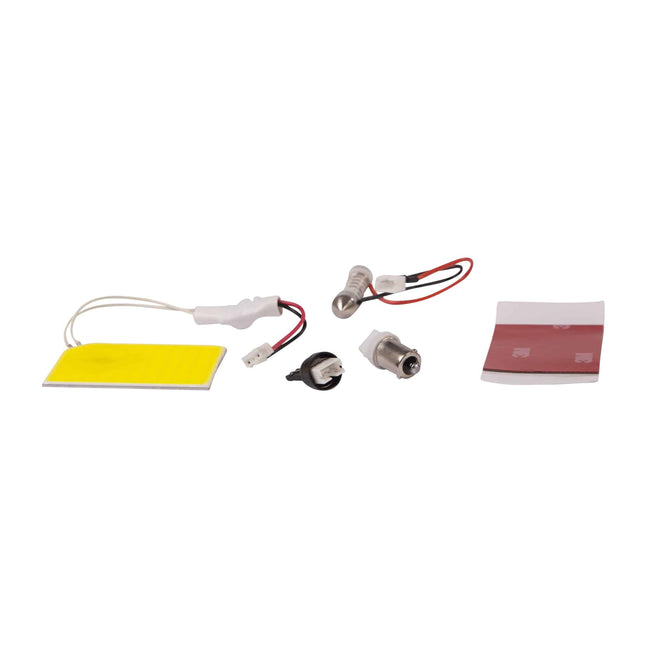

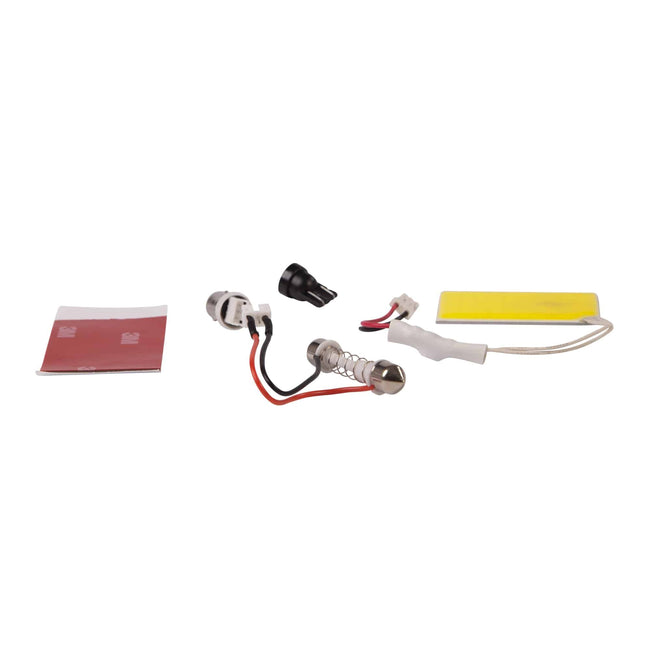

Kit Contents:
1 X Cob Led Panel (Fully Ic Regulated Not Polarity Sensitive)
1 X Festoon, T10
Ba9s Adaptors
1 X Genuine 3m Vhb Tm Industrial Double Sided Adhesive Tape
1 X Alcohol Cleaning Swab
1 X Instructions
Cob (Chips On Board) Is The Latest Technology In Packaging Leds Together To Produce A Combined Light Source, Resulting In A Very Broad And Uniform Light Being Emitted Over 180°.
With A Colour Temperature Of 4300k (Natural White), Cob Produces Increased Light Output Without Compromising On Light Quality While Minimising Current Draw.
Features
- Cob Panels Have Many Advantages Over Standard Single Placed Smd's
- Even Lighting Distribution Being Emitted Over 180°
- Up To 3 Times More Intensity Than Standard 5050 Smd's
- More Light Output Per Surface Area
- Super Thin, Less Than 2.8mm In Total Thickness
- Not Polarity Sensitive So All The Supplied Adaptors Can Be Fitted In Any Orientation
- Fully Regulated Ic Controlled External Driver Circuit
- Wide Voltage Range Of 9v-36v Dc

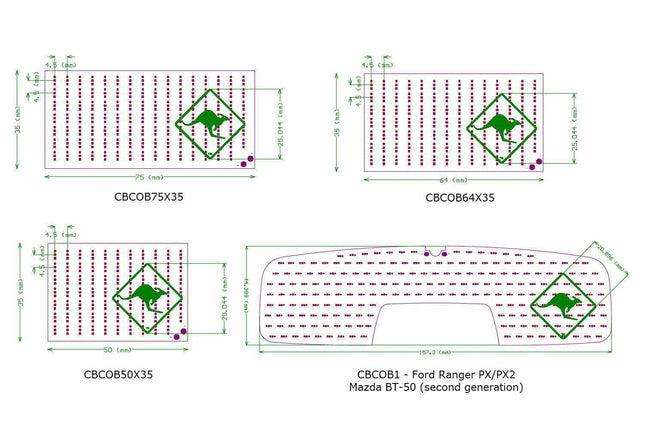

Specifications :
|
Size |
Power (Watts) |
Amps @ 12v |
Lumen (Effective) |
Chip Quantity |
Voltage Range |
|
50—35mm |
3.5w |
0.29 |
249 |
76 |
9-36v |
|
64—35mm |
3.7w |
0.31 |
282 |
97 |
9-36v |
|
75—35mm |
4.9w |
0.41 |
359 |
111 |
9-36v |
A Standard 28mm Long Halogen Festoon Generates 3 Watts Of Power, Produces 29 Lumens Of Light And Consumes 0.25 Amps @12v (Reference Osram P# 6428)
Need To Determine The Ideal Cob Panel Size For Your Vehicle?
- Step 1: Remove The Existing Interior Light Cover
- Step 2: Measure For The Optimum Vertical Space As Shown
- Step 3: Measure For The Optimum Horizontal Space As Shown
- Step 4: Reattach The Cover Of Your Interior Light
- Step 5: Refer To The Above Cob Panel Sizing And Ensure Your Optimum Allowable Space Does Not Exceed The Lightforce Options.
