Universal Momentary Switch: Designed For Use With Our Radio Controlled Unit However Can Also Be Used To Operate A 12 Volt Winch (Via The Solenoids) Or Other Accessory Where A Momentary Switch Is Needed.
This Unique Switch Features The Lightforce Logo That Can Be Wired Independently Into The Vehicles Electrical Lighting Circuit To Illuminate Once The Lighting System Has Been Activated.
Universal Carling Style Momentary Rocker Switch.

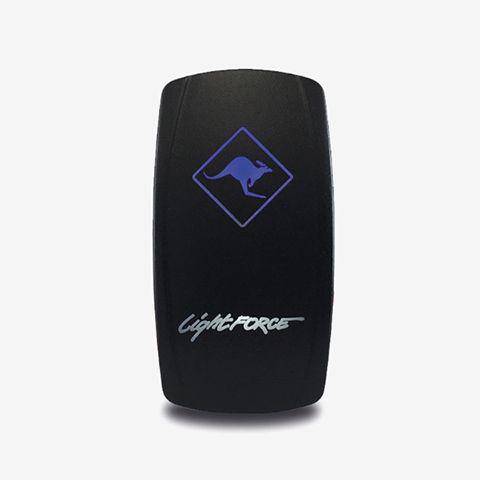

The Roo Logo Illuminates' Blue Via The Dash Light Circuit, With The Wording Illuminating White As Well, While The Switch Is In The On Position.
- 12 Volts 16 Amp.
- Independent Illuminated Lightforce Logo.
- Momentary Two Way Switch 5p Spdt (On)-Off-(On)
- Can Activate Two Sets Of Lights (Using A Second Radio Controlled Unit) Or Be Used To Activate A Winch
- Switch Size 36.8mm(L) X 21.7mm(W)
- Ip54 Rated
Wiring Instructions
Terminal 1 - To Vehicles Active Lighting Circuit
Terminal 2 - Connect To Vehicles Earth
Terminal 3 - Blank
Terminal 4 - To Accessory (Power Out)
Terminal 5 - From Supply (Power In)
Terminal 6 - To Accessory (Power Out)
