Fuel Manager Separator Kit For:
Volkswagen Amarok Diesel
This Filter Unit Is To Be Used As A Pre-Filter To Separate Water ; Contaminates Thus Avoiding Costly Repairs Due To Poor Fuel Quality.
This Kit Comes Complete With Very Specific Fitting Instructions And Mounting Bracket So All Of The Hard Work Is Done !

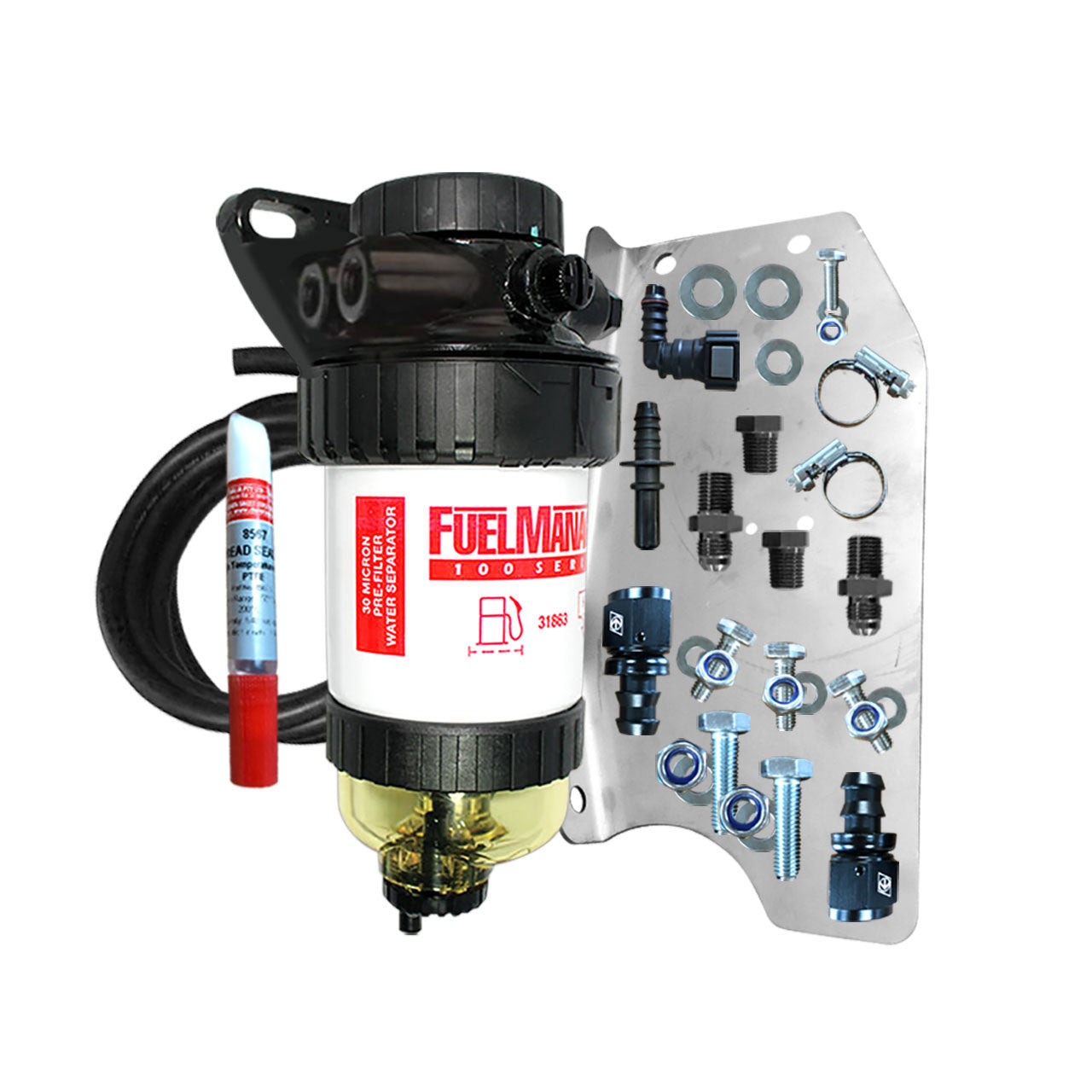

Kit Fm603dpk Includes:
Fuel Manager 30 Micron Filtration Unit
Mounting Bolts, Washers And Nyloc Nuts
4m 3/8 Inch Quality Fuel Hose
Direction Plus Filter Bracket
Blanking Plugs
2x Straight Tail Fittings
Hose Clamps
Thread Paste Sealant (6ml Tube)
3x 6mm Bolt
2x 6mm Washer 13mm
1x 6mm Washer 25mm
2x 6mm Washer Small
2x 6mm Nyloc Nuts
1x 6mm Spring Washer
1x 8mm Bolt, Washer ; Nut
1x Quick Fit Male And Matching
1x Quick Fit Female
Note: This Rear Hole Has Two Variations; It Can Have A Thread To Take A 6mm Bolt, Or Sometimes The Hole Has No Thread, But Is A Hexagon Shaped Hole. In Which Case You Would Use An 8mm Bolt With A Nut. The Amarok Fuel Supply System Cannot Be Primed Or Bled In The Usual Manner. Vw Dealers Use A Scan Tool To Activate The Tank Mounted Electric Supply Pump When Changing A Filter. Consequently You Need To Pre Fill The Fuel Manager Filter At The Time Of Installation. For This You Will Need About 400ml Of Diesel In A Clean Container Or Bottle.
Download Pdf Info ≫
Install All Fittings And Plugs With The Thread Paste.
