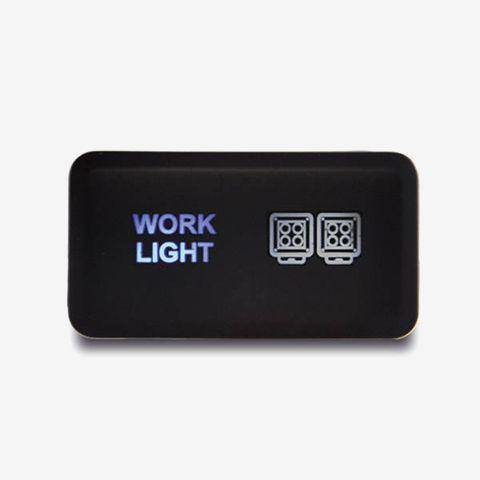

This OEM style switch feature a work light image and text horizontally available for the following vehicles without any modification to the original dashboard.
Suitable for 70 Series Landcruiser’s and the Holden Colorado when used with the Lightforce switch fascia (lower switch positions).
The wording illuminates blue via the dash light circuit, with the work lights image illuminating white as well, once the switch is in the on position.
- Single switched input
- LED illumination
- Suitable for positive switched vehicles only
- Harness included (300mm in length)
- Current rating 3 amps @ 12v
The switch must be used in conjunction with a relay as it has a maximum current rating of 3 amps @12v.
Vehicle Compatibility
| Make |
Model |
Compatible From |
Compatible To |
| Holden |
Colorado (fitted with LF fascia) |
2017 |
2020 |
| Toyota |
100 Series Landcruiser |
1998 |
2007 |
| Toyota |
4Runner |
2003 |
2009 |
| Toyota |
FJ Cruiser |
2007 |
2018 |
| Toyota |
Fortuner |
2005 |
2014 |
| Toyota |
HiAce |
2005 |
2013 |
| Toyota |
Highlander |
2001 |
2007 |
| Toyota |
Hilux |
2005 |
2014 |
| Toyota |
Kluger |
2001 |
2007 |
| Toyota |
Landcruiser 70 (Plastic Dash) Series |
1985 |
Current |
| Toyota |
Landcruiser 75 76 78 Series |
1985 |
2018 |
| Toyota |
Landcruiser 79 (Plastic Dash) Series |
1985 |
Current |
| Toyota |
Prado 120 |
2003 |
2009 |
| Toyota |
Tacoma |
2005 |
2011 |
| Toyota |
Tacoma (Left Side only) |
2012 |
2020 |
| Toyota |
Tundra (centre console if equipped) |
2005 |
2006 |
